Triple Flare 9 Integration Kit - Ford Ranger Raptor 3.0 EcoBoost V6

Triple Flare 9 Integration Kit - Ford Ranger Raptor 3.0 EcoBoost V6

£799.00 GBP
Skip to product information
Triple Flare 9 Integration Kit - Ford Ranger Raptor 3.0 EcoBoost V6

Triple Flare 9 Integration Kit - Ford Ranger Raptor 3.0 EcoBoost V6

£799.00 GBP

Transform your Ford Ranger Raptor with the Triple Flare 9 Integration Kit — a complete, vehicle-specific lighting upgrade combining exceptional long-range performance with seamless factory integration.

Engineered for performance. Designed for your Raptor.

  • 800m+ at 1 lux from each Flare 9
  • Factory high-beam integration with automatic dipping
  • Dynamic DRL
  • Aux 6 control through your existing overhead switch
  • Combined output of 36,000 raw lumens
  • No cutting or drilling required for bracket installation
  • Complete installation kit including lights, brackets, wiring and fittings
  • 5-year warranty on Flare 9 lights

    Everything you need for a clean, professional lighting upgrade.

Everything you need to know

How Does the Integration Kit Work?

Our Light Sync wiring system integrates the Flare 9 driving lights with your Raptor’s factory high beams and overhead Aux 6 switch.

Aux 6 ON

  • The Flare 9 daytime running lights activate with the vehicle’s ignition.
  • All three driving lights illuminate automatically when your factory high beams are activated.
  • The lights switch off with your factory high beams, including when the automatic dipping system operates.

    Aux 6 OFF
  • The complete Flare 9 system is disabled, including the daytime running lights.

    This provides seamless lighting control without additional dashboard switches.

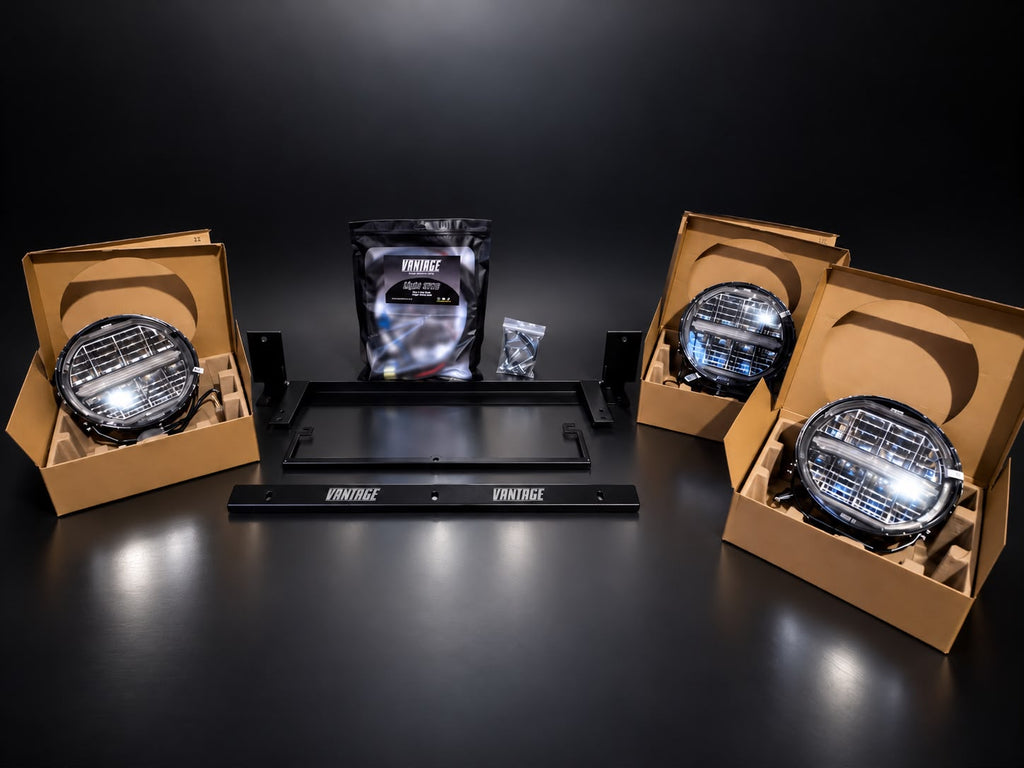

What's Included in the Kit?

Everything required for a clean, vehicle-specific lighting installation.

  • 3 × Vantage Flare 9 LED driving lights
  • 1 × Raptor-specific mounting bracket kit — designed to utilise existing factory mounting points, NO Drilling, NO Cutting.
  • 1 × Vantage Light Sync wiring harness — complete with fused relay system for high-beam integration
  • Mounting hardware — all required brackets, bolts and fittings
Installation & Vehicle Compatibility

Designed for the next-generation Ford Ranger Raptor 3.0L EcoBoost V6.

Our purpose-designed mounting brackets utilise existing vehicle mounting points, meaning no cutting or drilling is required to install the bracketry.

The Light Sync wiring harness integrates with the vehicle’s factory high beams and overhead Aux 6 switch.

Installation requires connecting the supplied wiring harness to the relevant vehicle electrical circuits.

Professional installation is recommended for those unfamiliar with automotive electrical systems.

Please contact us before ordering if you are unsure about vehicle compatibility.

Important Note

This kit is supplied as an auxiliary lighting accessory. The installer is responsible for correct installation and for ensuring compliance with local vehicle lighting regulations.

The driving light function must be wired and used in line with applicable road regulations, including correct switching, positioning, mounting and aiming requirements.

Installation Notes

  • Designed for 12V & 24V vehicle systems
  • Professional or competent installation is recommended
  • Designed to operate with the vehicle’s main beam circuit
  • Ensure lights are securely mounted
  • Ensure correct aiming before use
  • Check local regulations before on-road use
  • Battery should be disconnected before installation begins

Safety Notice, Installation Requirements & Liability Limitation

This auxiliary lighting kit is intended for use on 12V and 24V DC vehicle electrical systems only.

The lights must be installed using the supplied fused relay wiring harness. Direct connection to the battery without appropriate fuse and relay protection is not permitted.

Installation must be carried out by a competent person or qualified auto electrician. The vehicle battery must be disconnected before installation begins.

To reduce the risk of electrical fault, overheating or fire hazard, the installer must ensure that:

  • The supplied fuse is installed and not uprated
  • All wiring connections are tight and fully insulated
  • Cables are routed away from heat sources, sharp edges and moving components
  • Wiring is secured to prevent chafing or vibration damage
  • The relay and fuse holder are mounted in a dry, protected location
  • The product is not modified or disassembled

Do not alter the wiring harness, fuse rating, connectors or internal light components. Do not use on systems other than 12V and 24V DC. Do not operate if wiring is damaged.

Damage or loss resulting from incorrect installation, improper wiring, modification, misuse or failure to follow the supplied instructions is not covered under warranty.

Flare 9 Performance & Specifications

Technical Specifications

  • Power: 115W per light
  • Voltage: 12–24V DC
  • Colour Temperature: 6000K
  • Beam Pattern: Flattened circular driving beam
  • Performance: Over 800 metres at 1 lux from a single Flare 9
  • 1 Flare 9 produces 12,000 raw lumens.
  • Protection Rating: IP68

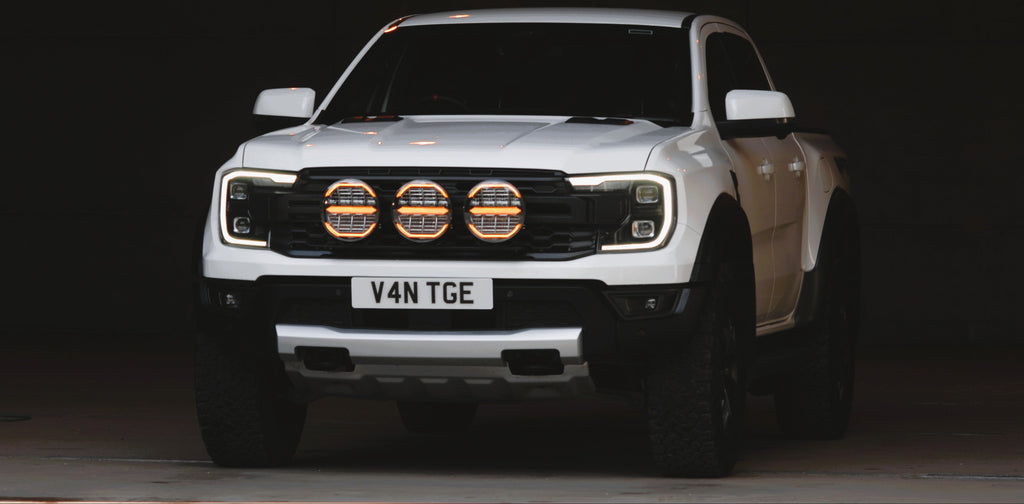

  • DRL: Selectable white or amber with dynamic start-up sequence

    Designed to deliver excellent forward illumination with a practical driving beam pattern.

    DRL colour and operation must comply with local road regulations.

Certifications & Compliance

The Vantage Flare 9 carries the following approvals and compliance markings:

  • ECE R149: Approved for auxiliary main beam / driving light use / high beam trigger
  • ECE R148: Approved for DRL / position light function / to work with a vehicles DRL, sidelight and dipped beam
  • ECE R10: Tested for electromagnetic compatibility
  • CE EMC & RoHS: Manufactured in line with applicable EU safety, health and environmental requirements

The Flare 9 is suitable for road use when installed correctly as an auxiliary driving light. The main beam function must be wired to operate with the vehicle’s main beam circuit, unless it is only being used for off road use. The DRL / position light function must be wired and used in line with applicable vehicle lighting regulations.

Testing Standards

All components have relevant compliance documentation. Product assembly is checked for proper fit, electrical integrity and safe operation within rated parameters.

Delivery & Returns

We aim to make ordering your Vantage Lighting kit as straightforward as possible.

Delivery

All available shipping options and applicable delivery charges are displayed at checkout.

For international orders, additional import duties or local taxes may apply.

Returns

If you need to arrange a return or exchange, please contact our team for assistance.

All returns are handled in accordance with our published Returns Policy and applicable consumer rights.

Returned products must be securely packaged. The customer is responsible for return shipping unless otherwise agreed. If the product is found not to be faulty, or the issue is not covered under warranty, the product may be returned to the customer and return shipping costs may apply.

Warranty & Support

Vantage Light Units — Up to 5 Years

Vantage Lighting light units are covered for 5 years from
the original purchase date against manufacturing defects affecting the core
function of the light.

This includes:

  • LED failure caused by a manufacturing defect
  • Internal driver or circuit failure caused by a manufacturing defect
  • Loss of light output caused by an internal product fault
  • Water ingress caused by a manufacturing or sealing defect
  • Structural failure of the light housing or lens caused by a manufacturing defect

This does not cover external damage, impact damage,
incorrect installation, modification, misuse, or damage caused after the
product has been fitted.

Finish, Coating & Appearance — 1 Year

The external finish of Vantage light units is covered for 1
year against significant coating defects caused by a manufacturing fault.

This includes:

  • Premature peeling or flaking of the coating
  • Significant corrosion caused by a coating defect
  • Significant colour fading or finish failure not caused by external factors

This does not cover stone chips, scratches, pressure washing
damage, road debris, accident damage, chemical damage, harsh cleaners, TFR,
salt damage where the product has not been maintained, or normal wear and tear.

Minor cosmetic changes over time are not considered a
warranty fault.

Vehicle-Specific Kit Brackets & Mounting Hardware — 1
Year

Vantage vehicle-specific brackets and mounting components
are covered for 1 year against manufacturing defects.

This includes:

  • Bracket failure caused by a manufacturing defect
  • Incorrectly supplied kit components
  • Defective mounting hardware supplied by Vantage

This does not cover damage caused by incorrect fitting,
over-tightening, modification, vehicle impact, off-road impact, corrosion
caused by external damage, or use outside the intended application.

Wiring Looms, Relays, Switches & Connectors — 1 Year

Wiring looms, relays, switches, fuses, fuse holders,
connectors, and electrical accessories supplied as part of a Vantage kit are
covered for 1 year against manufacturing defects.

This includes:

  • Faulty relays
  • Faulty switches
  • Defective connectors supplied by Vantage
  • Wiring faults caused by a manufacturing defect

This does not cover incorrect installation, poor earth
points, incorrect power supply, blown fuses caused by vehicle faults, water
damage from badly sealed connections, modified wiring, cut wiring, poor
crimping, or damage to vehicle-side connectors.

The connection between a Vantage product and the vehicle’s
own wiring is not covered where the issue is caused by installation, vehicle
wiring, poor connection, corrosion, or modification outside Vantage’s control.

Condensation

A small amount of temporary condensation or misting inside a
light may occur in certain temperature and humidity conditions. This is not
considered a warranty fault if it clears naturally and does not affect the
performance or function of the light.

Persistent water build-up, pooling, or moisture that does
not clear may be assessed as a potential warranty issue, provided the lens,
housing, seals, and breather system have not been damaged or tampered with.

What Is Not Covered

This warranty does not cover:

  • Incorrect installation or wiring
  • Products that have been modified, opened, dismantled, or repaired without approval
  • Damage caused by impact, accident, misuse, neglect, or abuse
  • Damage caused by pressure washing, harsh chemicals, acidic or alkaline cleaners, TFR, solvents, or salt exposure without proper maintenance
  • Stone chips, scratches, dents, or general road wear
  • Damage caused by incorrect voltage, poor earth, vehicle electrical faults, or non-approved accessories
  • Labour costs for removal, refitting, diagnosis, or installation
  • Recovery costs, loss of use, loss of earnings, or any indirect costs
  • Products purchased second-hand or from an unauthorised seller
  • Normal wear and tear
  • Products used outside their intended vehicle application

Making a Warranty Claim

To make a warranty claim, please contact Vantage Lighting
with:

  • Your proof of purchase
  • Your order number, if available
  • Clear photos or videos showing the issue
  • Photos of the installation, wiring, and mounting where relevant
  • A description of how and when the fault occurred

We may ask for the product to be returned for inspection
before approving a warranty claim.

If a valid warranty claim is accepted, Vantage Lighting
will, at our discretion, repair the product, replace the product, supply
replacement parts, or refund the original purchase price.

Important Note

This warranty is in addition to your statutory rights and
does not affect your legal rights as a consumer.
