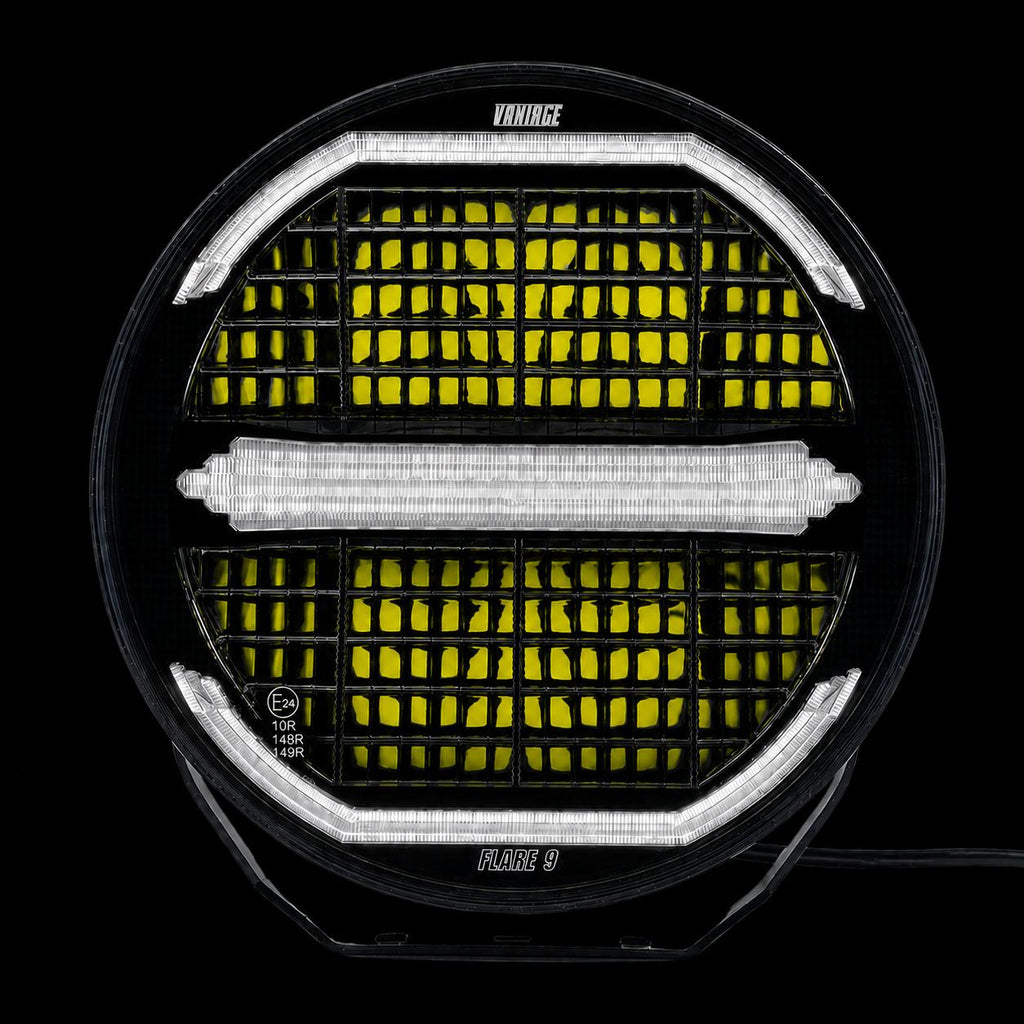

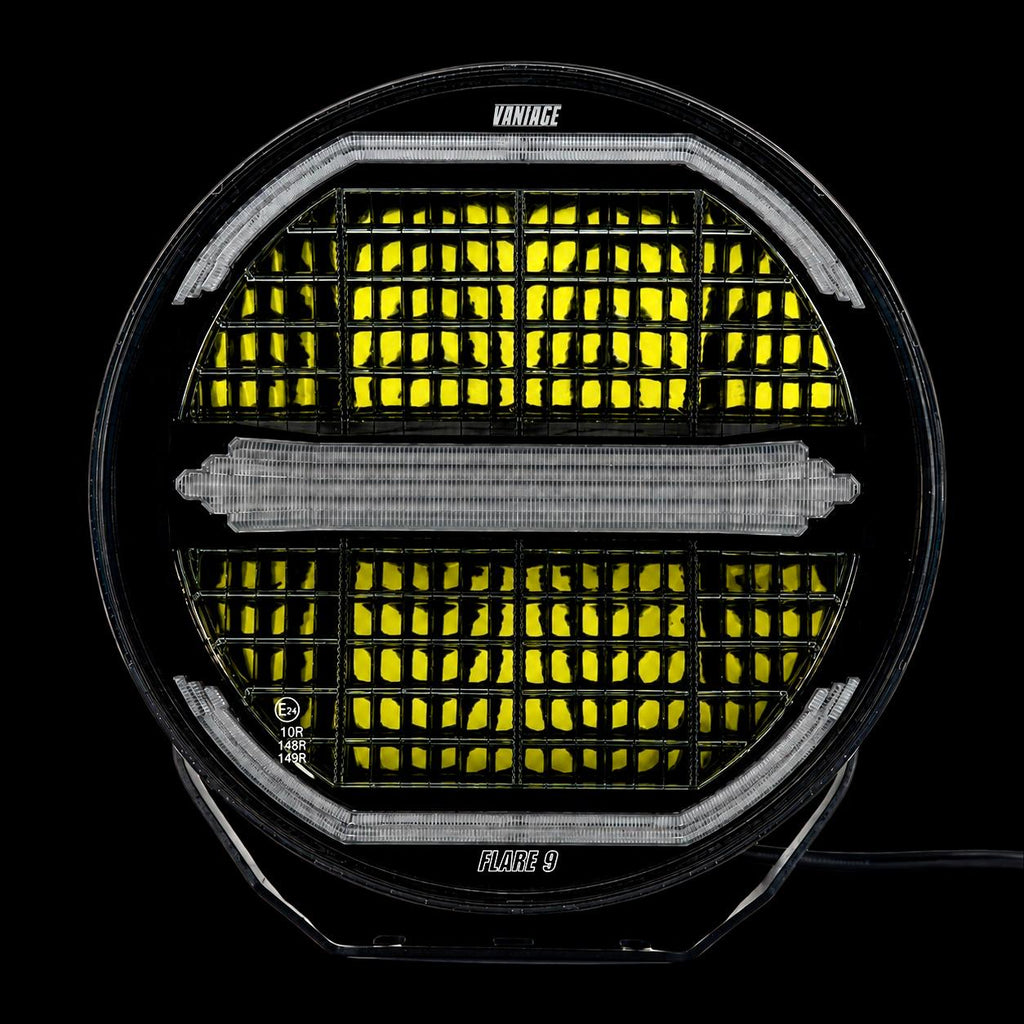

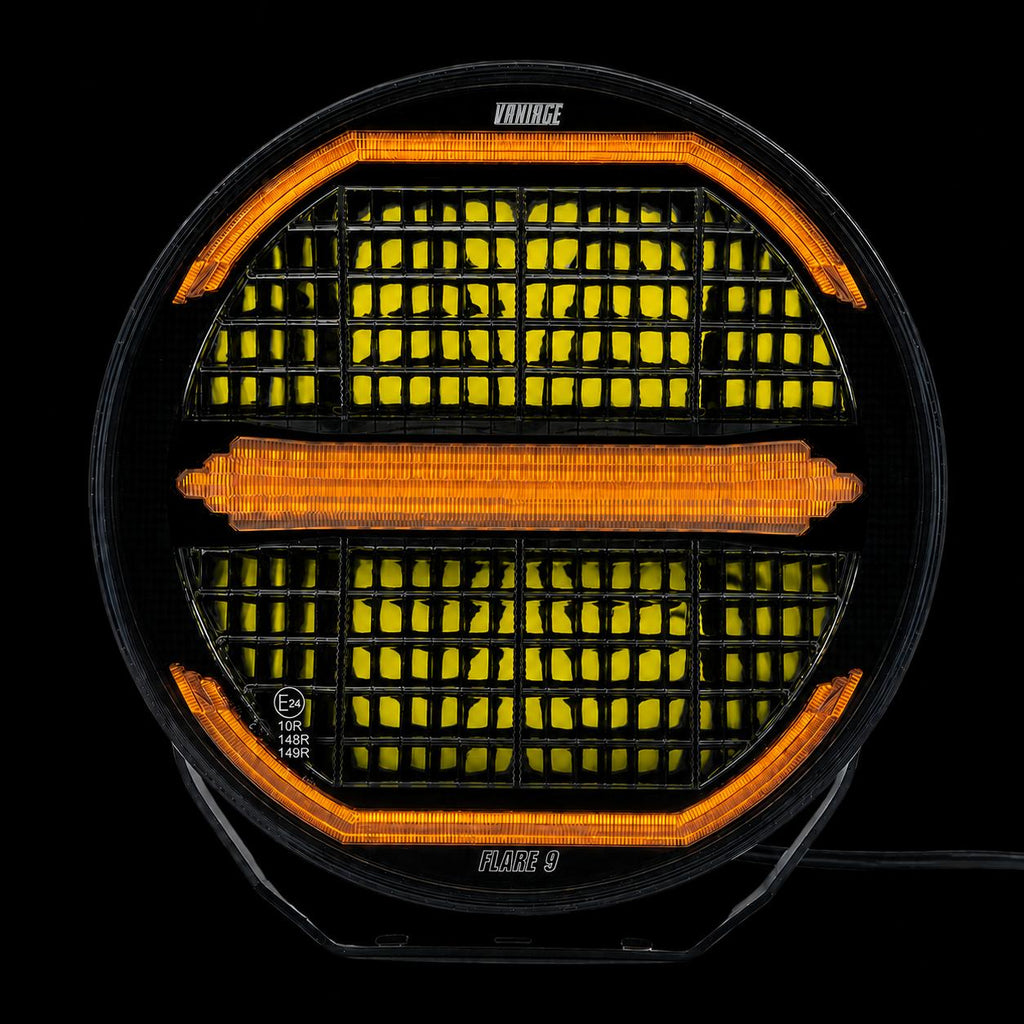

Flare 9 9" Driving Light

Product Description

Upgrade your vehicle lighting with the Vantage Flare 9 — a premium 9” LED driving light designed for powerful long-range visibility, road presence and flexible installation across a wide range of vehicle applications.

Built for drivers who need more than basic factory lighting, the Flare 9 delivers strong forward illumination for dark roads, rural routes, towing, overlanding and off-road use. Its integrated DRL function gives the light a modern, distinctive appearance while keeping the design clean and purposeful.

Sold individually, the Flare 9 is ideal for custom installations or for customers building their own auxiliary lighting setup.

Engineered for the Road Ahead.

What’s Included

• 1 × Vantage Flare 9 LED driving light
• Installation bracket and bolts

Key Features

• Premium 9” LED driving light
• Powerful long-range main beam performance delivering 1 Lux to just over 750 metres.
• Integrated DRL function
• Suitable for 12V–24V vehicle systems
• Designed for auxiliary lighting installations
• Suitable for custom installs and replacement units
• Built using automotive-grade components
• Suitable for 4x4s, pickup trucks, vans and utility vehicles
• Premium Vantage styling

Light Specifications

• Light Type: LED Driving Light / DRL
• Size: 9”
• Power / Wattage: 115W
• Voltage Range: 9-32V
• Beam Pattern: Driving Beam
• Ingress Rating: IP68 - Dust tight and can withstand prolonged immersion
• Operating Temperature: -40 degrees C to 120 degrees C

Certifications & Compliance

The Vantage Flare 9 carries the following approvals and compliance markings:

• ECE R149: Approved for auxiliary main beam / driving light use / high beam trigger
• ECE R148: Approved for DRL / position light function / to work with a vehicles DRL, sidelight and dipped beam
• ECE R10: Tested for electromagnetic compatibility
• CE EMC & RoHS: Manufactured in line with applicable EU safety, health and environmental requirements

The Flare 9 is suitable for road use when installed correctly as an auxiliary driving light. The main beam function must be wired to operate with the vehicle’s main beam circuit, unless it is only being used for off road use. The DRL / position light function must be wired and used in line with applicable vehicle lighting regulations.

Testing Standards

All components have relevant compliance documentation. Product assembly is checked for proper fit, electrical integrity and safe operation within rated parameters.

Important Note

This product is supplied as an auxiliary lighting accessory. The installer is responsible for correct installation and for ensuring compliance with local vehicle lighting regulations.

The driving light function must be wired and used in line with applicable road regulations, including correct switching, positioning, mounting and aiming requirements.

Installation Notes

• Designed for 12V and 24V vehicle systems
• Professional or competent installation is recommended
• A suitable fused relay wiring loom should be used
• Ensure the light is securely mounted
• Ensure correct aiming before use
• Check local regulations before on-road use
• Battery should be disconnected before installation begins

Safety Notice, Installation Requirements & Liability Limitation

This auxiliary lighting product is intended for use on compatible DC vehicle electrical systems only.

The light must be installed using a suitable fused relay wiring harness. Direct connection to the battery without appropriate fuse and relay protection is not permitted.

Installation must be carried out by a competent person or qualified auto electrician. The vehicle battery must be disconnected before installation begins.

To reduce the risk of electrical fault, overheating or fire hazard, the installer must ensure that:

• The correct fuse rating is used and not uprated
• All wiring connections are tight and fully insulated
• Cables are routed away from heat sources, sharp edges and moving components
• Wiring is secured to prevent chafing or vibration damage
• The relay and fuse holder are mounted in a dry, protected location
• The product is not modified or disassembled

Do not alter the wiring harness, fuse rating, connectors or internal light components. Do not operate if wiring is damaged.

Damage or loss resulting from incorrect installation, improper wiring, modification, misuse or failure to follow the supplied instructions is not covered under warranty.

Warranty

Warranty Period

5 Years from date of purchase. Activate your warranty by scanning the QR code on the box!

Coverage

This warranty covers manufacturing defects in the light under normal use.

If the product fails due to a material or workmanship fault within the warranty period, it will be repaired or replaced at our discretion.

What’s Not Covered

• Incorrect installation or wiring errors
• Damage caused by misuse, modification or impact
• Water ingress caused by improper mounting or sealing
• Normal cosmetic wear and tear
• Damage from over-voltage or electrical faults in the vehicle

Claim Process

To make a warranty claim, contact us with your order number, a description of the fault and photos or video where possible.

We may provide troubleshooting steps first. If a return is required for a confirmed fault, a return authorisation and instructions will be provided.

Proof of purchase required: Yes — order number or receipt.

Application

Suitable for auxiliary vehicle lighting systems where a main beam driving light function is required, combined with high-output auxiliary lighting for rural, towing, overland and off-road use.

Vehicle Types:

• 4x4 vehicles
• Pickup trucks
• Vans
• Agricultural vehicles
• Utility vehicles
• Service vehicles
• Other compatible 12V–24V DC vehicle systems

Use Case:

Driving light function — for auxiliary main beam use.

The Flare 9 driving light function should only be used on-road where installed correctly and in accordance with applicable vehicle lighting regulations.
