Flare 9

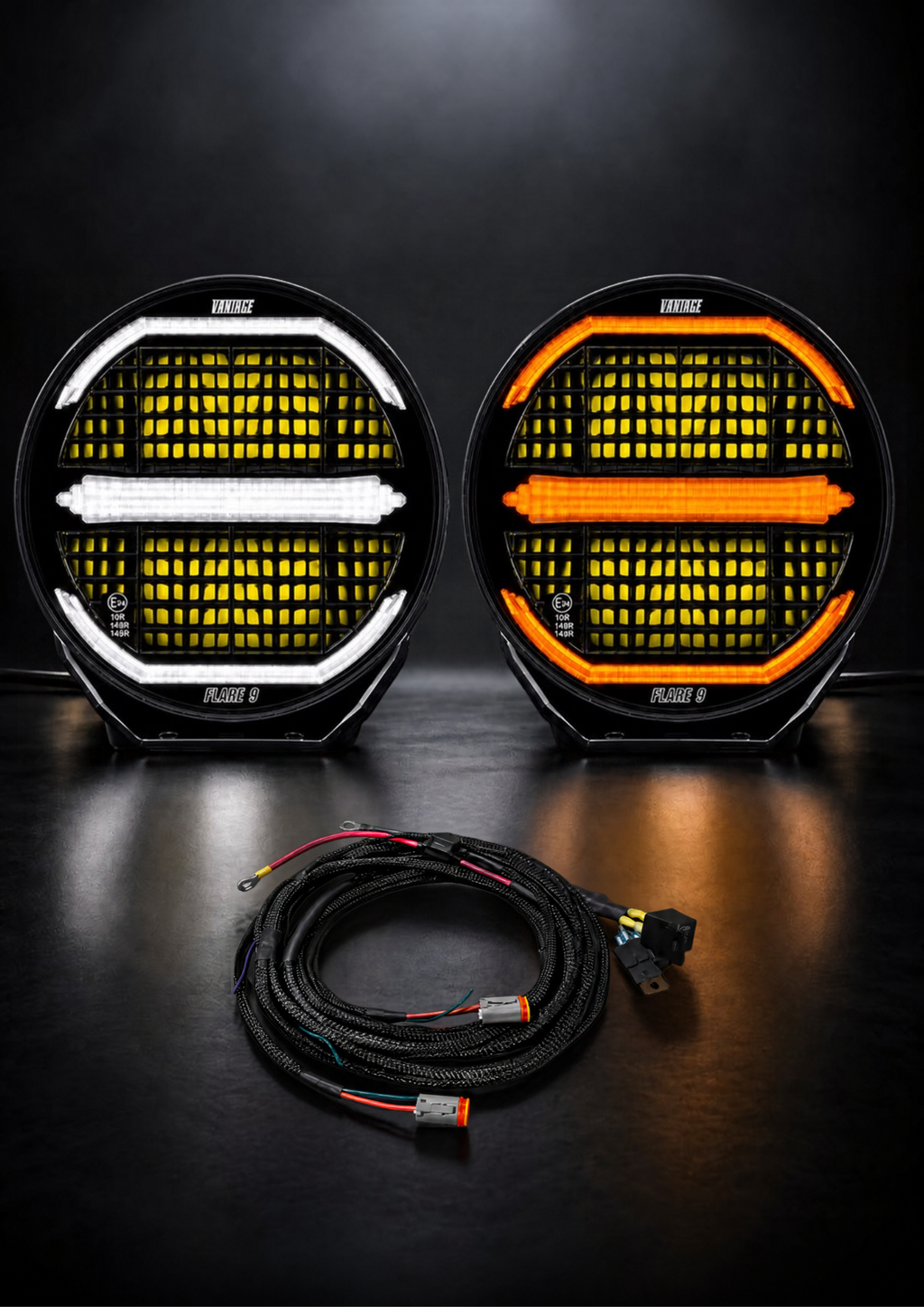

Twin Flare 9 Kit with Light SYNC High Beam Trigger Wiring Harness

Twin Flare 9 Kit with Light SYNC High Beam Trigger Wiring Harness

£429.00 GBP
Skip to product information
Twin Flare 9 Kit with Light SYNC High Beam Trigger Wiring Harness

Twin Flare 9 Kit with Light SYNC High Beam Trigger Wiring Harness

£429.00 GBP

The Vantage Flare 9 is designed for serious long range performance, delivering 1 lux at just over 800 metres from a single light.

It has been carefully designed to produce a flattened circular driving beam which provides impressive long distance illumination while still offering a wide field of view, improving visibility across the road into the surrounding environment, making night time driving safer and easier.

This kit is for customers who want to carry out their own custom lighting upgrade and integrate the Flare 9's to the vehicles high beam.

Everything you need to know

What is included with this kit?

Each Flare 9 includes:

  • 3 X Vantage Flare 9 LED Driving Lights
  • Stainless steel mounting brackets
  • 1 X Triple Plug Light SYNC wiring harness
Performance & Specifications

Technical Specifications

  • Power: 115W per light
  • Voltage: 12–24V DC
  • Colour Temperature: 6000K
  • Beam Pattern: Flattened circular driving beam
  • Performance: Over 800 metres at 1 lux from a single Flare 9
  • Protection Rating: IP68
  • DRL: Selectable white or amber with dynamic start-up sequence

Designed to deliver excellent forward illumination with a practical driving beam pattern.

DRL colour and operation must comply with local road regulations.

Certifications & Compliance

The Vantage Flare 9 carries the following approvals and compliance markings:

  • ECE R149: Approved for auxiliary main beam / driving light use / high beam trigger
  • ECE R148: Approved for DRL / position light function / to work with a vehicles DRL, sidelight and dipped beam
  • ECE R10: Tested for electromagnetic compatibility
  • CE EMC & RoHS: Manufactured in line with applicable EU safety, health and environmental requirements

The Flare 9 is suitable for road use when installed correctly as an auxiliary driving light. The main beam function must be wired to operate with the vehicle’s main beam circuit, unless it is only being used for off road use. The DRL / position light function must be wired and used in line with applicable vehicle lighting regulations.

Testing Standards

All components have relevant compliance documentation. Product assembly is checked for proper fit, electrical integrity and safe operation within rated parameters.

Installation & Vehicle Compatibility

Important Note

This product is supplied as an auxiliary lighting kit. The installer is responsible for correct installation and for ensuring compliance with local vehicle lighting regulations.

The driving light function must be wired and used in line with applicable road regulations, including correct switching, positioning, mounting and aiming requirements.

Installation Notes

  • Designed for 12V and 24V vehicle systems
  • Professional or competent installation is recommended
  • Check the installation instructions provided for the correct install procedure for Light SYNC wiring harnesses.
  • Ensure the light is securely mounted
  • Ensure correct aiming before use
  • Check local regulations before on-road use
  • Battery should be disconnected before installation begins

Safety Notice, Installation Requirements & Liability Limitation

This auxiliary lighting product is intended for use on compatible DC vehicle electrical systems only.

The light must be installed using a suitable fused relay wiring harness. Direct connection to the battery without appropriate fuse and relay protection is not permitted.

Installation must be carried out by a competent person or qualified auto electrician. The vehicle battery must be disconnected before installation begins.

To reduce the risk of electrical fault, overheating or fire hazard, the installer must ensure that:

  • The correct fuse rating is used and not uprated
  • All wiring connections are tight and fully insulated
  • Cables are routed away from heat sources, sharp edges and moving components
  • Wiring is secured to prevent chafing or vibration damage
  • The relay and fuse holder are mounted in a dry, protected location
  • The product is not modified or disassembled

Do not alter the wiring harness, fuse rating, connectors or internal light components. Do not operate if wiring is damaged.

Damage or loss resulting from incorrect installation, improper wiring, modification, misuse or failure to follow the supplied instructions is not covered under warranty.

Delivery & Returns

We aim to make ordering your Vantage Lighting kit as straightforward as possible.

Delivery

All available shipping options and applicable delivery charges are displayed at checkout.

For international orders, additional import duties or local taxes may apply.

Returns

If you need to arrange a return or exchange, please contact our team for assistance.

All returns are handled in accordance with our published Returns Policy and applicable consumer rights.

Returned products must be securely packaged. The customer is responsible for return shipping unless otherwise agreed. If the product is found not to be faulty, or the issue is not covered under warranty, the product may be returned to the customer and return shipping costs may apply.

Warranty & Support

Vantage Light Units — Up to 5 Years

Vantage Lighting light units are covered for 5 years from
the original purchase date against manufacturing defects affecting the core
function of the light.

This includes:

  • LED failure caused by a manufacturing defect
  • Internal driver or circuit failure caused by a manufacturing defect
  • Loss of light output caused by an internal product fault
  • Water ingress caused by a manufacturing or sealing defect
  • Structural failure of the light housing or lens caused by a manufacturing defect

This does not cover external damage, impact damage,
incorrect installation, modification, misuse, or damage caused after the
product has been fitted.

Finish, Coating & Appearance — 1 Year

The external finish of Vantage light units is covered for 1
year against significant coating defects caused by a manufacturing fault.

This includes:

  • Premature peeling or flaking of the coating
  • Significant corrosion caused by a coating defect
  • Significant colour fading or finish failure not caused by external factors

This does not cover stone chips, scratches, pressure washing
damage, road debris, accident damage, chemical damage, harsh cleaners, TFR,
salt damage where the product has not been maintained, or normal wear and tear.

Minor cosmetic changes over time are not considered a
warranty fault.

Vehicle-Specific Kit Brackets & Mounting Hardware — 1
Year

Vantage vehicle-specific brackets and mounting components
are covered for 1 year against manufacturing defects.

This includes:

  • Bracket failure caused by a manufacturing defect
  • Incorrectly supplied kit components
  • Defective mounting hardware supplied by Vantage

This does not cover damage caused by incorrect fitting,
over-tightening, modification, vehicle impact, off-road impact, corrosion
caused by external damage, or use outside the intended application.

Wiring Looms, Relays, Switches & Connectors — 1 Year

Wiring looms, relays, switches, fuses, fuse holders,
connectors, and electrical accessories supplied as part of a Vantage kit are
covered for 1 year against manufacturing defects.

This includes:

  • Faulty relays
  • Faulty switches
  • Defective connectors supplied by Vantage
  • Wiring faults caused by a manufacturing defect

This does not cover incorrect installation, poor earth
points, incorrect power supply, blown fuses caused by vehicle faults, water
damage from badly sealed connections, modified wiring, cut wiring, poor
crimping, or damage to vehicle-side connectors.

The connection between a Vantage product and the vehicle’s
own wiring is not covered where the issue is caused by installation, vehicle
wiring, poor connection, corrosion, or modification outside Vantage’s control.

Condensation

A small amount of temporary condensation or misting inside a
light may occur in certain temperature and humidity conditions. This is not
considered a warranty fault if it clears naturally and does not affect the
performance or function of the light.

Persistent water build-up, pooling, or moisture that does
not clear may be assessed as a potential warranty issue, provided the lens,
housing, seals, and breather system have not been damaged or tampered with.

What Is Not Covered

This warranty does not cover:

  • Incorrect installation or wiring
  • Products that have been modified, opened, dismantled, or repaired without approval
  • Damage caused by impact, accident, misuse, neglect, or abuse
  • Damage caused by pressure washing, harsh chemicals, acidic or alkaline cleaners, TFR, solvents, or salt exposure without proper maintenance
  • Stone chips, scratches, dents, or general road wear
  • Damage caused by incorrect voltage, poor earth, vehicle electrical faults, or non-approved accessories
  • Labour costs for removal, refitting, diagnosis, or installation
  • Recovery costs, loss of use, loss of earnings, or any indirect costs
  • Products purchased second-hand or from an unauthorised seller
  • Normal wear and tear
  • Products used outside their intended vehicle application

Making a Warranty Claim

To make a warranty claim, please contact Vantage Lighting
with:

  • Your proof of purchase
  • Your order number, if available
  • Clear photos or videos showing the issue
  • Photos of the installation, wiring, and mounting where relevant
  • A description of how and when the fault occurred

We may ask for the product to be returned for inspection
before approving a warranty claim.

If a valid warranty claim is accepted, Vantage Lighting
will, at our discretion, repair the product, replace the product, supply
replacement parts, or refund the original purchase price.

Important Note

This warranty is in addition to your statutory rights and
does not affect your legal rights as a consumer.
